Which Process Should a Robot Enclosure Use?
Five routes, one decision. What changes the answer is quantity, geometry and how close a person will stand to the part.
Short answer: machine the parts you need to be strong and accurate this week, cast the covers you need in a colour and a set, print what a cutter cannot reach, form the frame out of sheet metal, and only cut a tool when the volume has been justified. Most robot programmes use three of those five at once.
The table a quotation is built from
| Where the programme is | Parts needed | Route | Why |
|---|---|---|---|
| Design review, show piece | 1 to 5 | Machined or printed | No tooling cost. Data changes next week, so nothing should be committed yet. |
| Fit and functional test | 5 to 20 | Machined, with printed internals | Real alloys and production-equivalent plastics, held to 0.02 mm positional. |
| Pilot covers, one colour set | 10 to a few hundred | Vacuum casting | Soft or hard resin, colour matched, surface finished at the base. |
| Small-batch sale units | a few hundred to a few thousand | Rapid tooling and injection moulding | Per-part cost drops enough to pay for the tool. T0 to T3 trials prove it. |
| Structure, frames, enclosures | any quantity | Sheet metal | Bent and welded plate gives stiffness per gram that casting cannot. |
Three questions that decide it
How many, and when do you need the first one?
Quantity is the loudest factor because tooling cost is one-off. A single torso shell has no reason to be moulded; a run of 800 cosmetic covers has no reason to be machined one at a time. Vacuum casting and rapid tooling exist for the band between the two: 10 to a few thousand parts.
Will a cutter reach every surface?
If a tool path cannot exist, machining is out. Internal channels, lattice structures and conformal brackets go to metal printing. Plastic printing covers light internal parts where the layer direction can be planned around the load. Everything that must carry a bearing or a joint load stays machined.
How close will someone stand to it?
A cover on a humanoid shell is read at arm’s length, so its surface is a product decision, not a manufacturing one. Cast covers come out of a mould that copied a polished master pattern, which is the cheapest way to get a clean cosmetic face at batch. Machined covers need hand polishing to hide the tool, and time is not free.

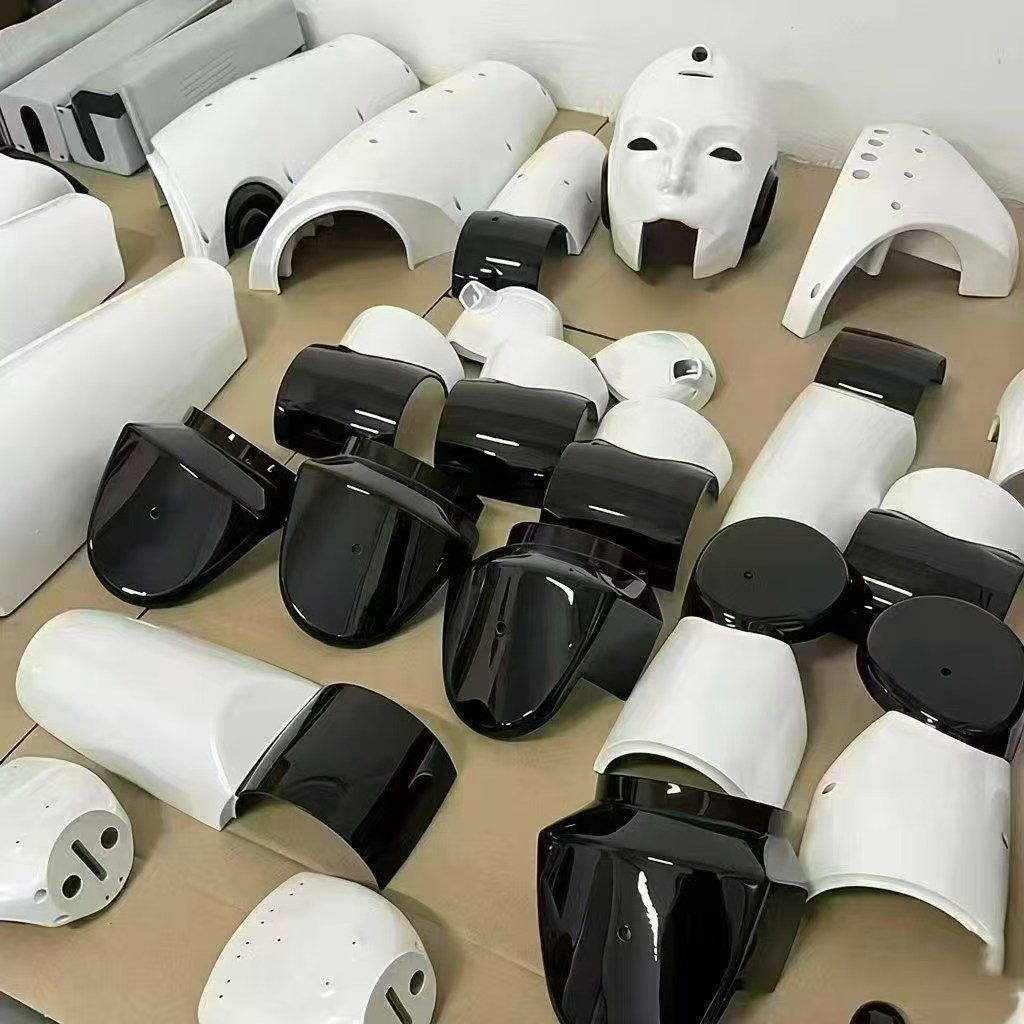

White and black cosmetic covers in a batch
Pink master pattern inside an opened silicone mouldWhat the machine park can hold
Standard machining centres travel 2 × 1.2 × 0.9 m, hold bores to 0.01 mm and run to 35,000 rpm. Large frames go on the Italian-imported five-axis gantry mill: 24,000 rpm inside an 8 × 4.2 × 2.5 m envelope, which is where a full-size robot frame or buck fits in one set-up. A 2,000-ton hydraulic press covers large stamped hardware parts, and plastic and metal printing run in dedicated workshops.
Where each route stops paying
How the routes combine
A programme that comes through the base in this shape: structural frame welded from sheet metal, joint housings machined in aluminium, limb covers cast in matched colour, internal cable brackets metal printed, and one cosmetic cover taken into a rapid tool once the batch is confirmed. One contract, one schedule, one shipment.
Questions buyers ask
Is CNC machining always the most expensive route?
For small quantities of simple aluminium parts it is usually the cheapest way to get a real, dense, tolerant part, because there is no tooling to pay for. Cost rises when geometry needs many set-ups or when a part has features a cutter cannot reach.
Can one robot programme use several processes?
Yes, and it usually does. A shell can be machined, cosmetic covers vacuum cast, internal brackets metal printed and the frame welded from sheet metal, all under one contract at the same base.
What quantity makes rapid tooling worth it?
When the part count is high enough that per-part cost matters more than the tool cost, typically a few hundred to a few thousand pieces. Below that, casting and machining stay ahead.
