CNC Machining & Turning-Milling
Precision bores to 0.01 mm on aluminium and stainless structural parts, from one-piece prototypes to small batches.
2 × 1.2 × 0.9 m
Max machining travel on the vertical centres that handle part models and small batches.
0.01 mm
Precision bore tolerance; positional tolerance held to 0.02 mm.
35,000 rpm
Max spindle speed for finishing aluminium and engineering plastics.
8 × 4.2 × 2.5 m
Five-axis gantry envelope, Italian-imported, running at 24,000 rpm.
Machining centres focus on part models and small-batch machining of aluminium alloy and stainless steel components for robotics, appliance, aviation and medical programmes. Turning-and-milling compound machines take rotational joints, shafts and bushings in one set-up, which keeps concentricity on limb assemblies that would otherwise move between two machines.
Large structural work goes to the gantry mill: full-size frames and prototype assemblies are machined without splitting the part for welding.
Five-face machined housing
Machined aluminium housing held to 0.02 mm positional tolerance

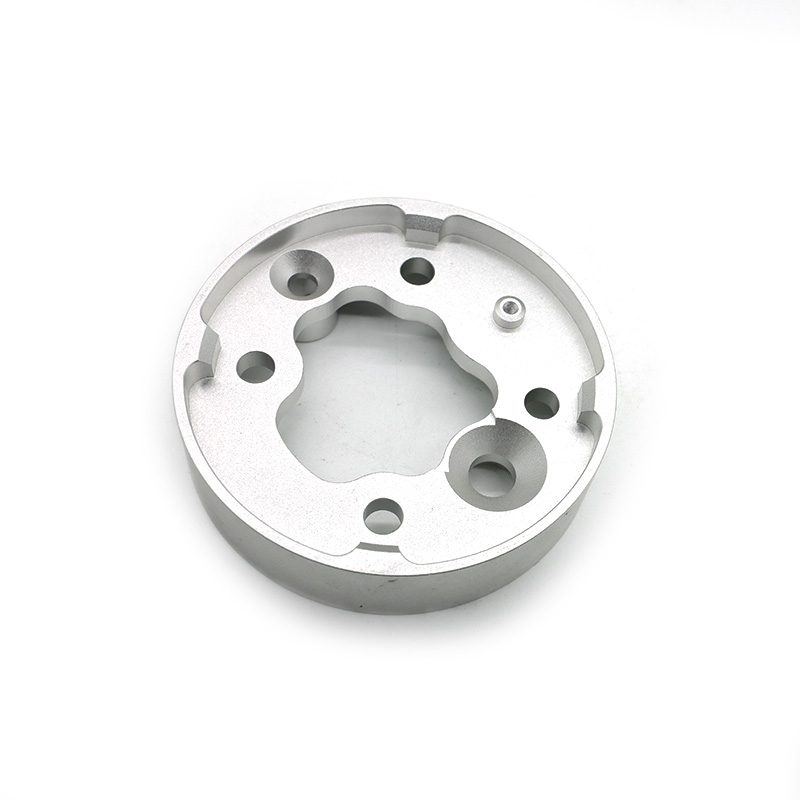

Machined aluminium flange

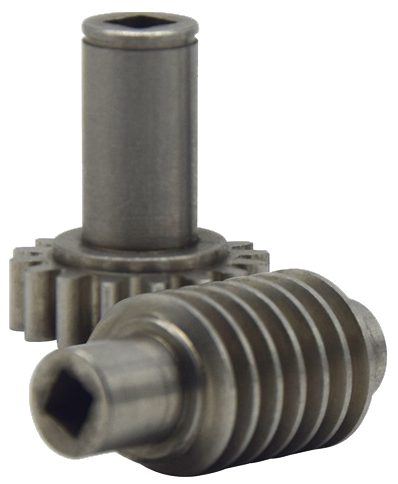

Turned shaft and worm from a turning-milling compound machine

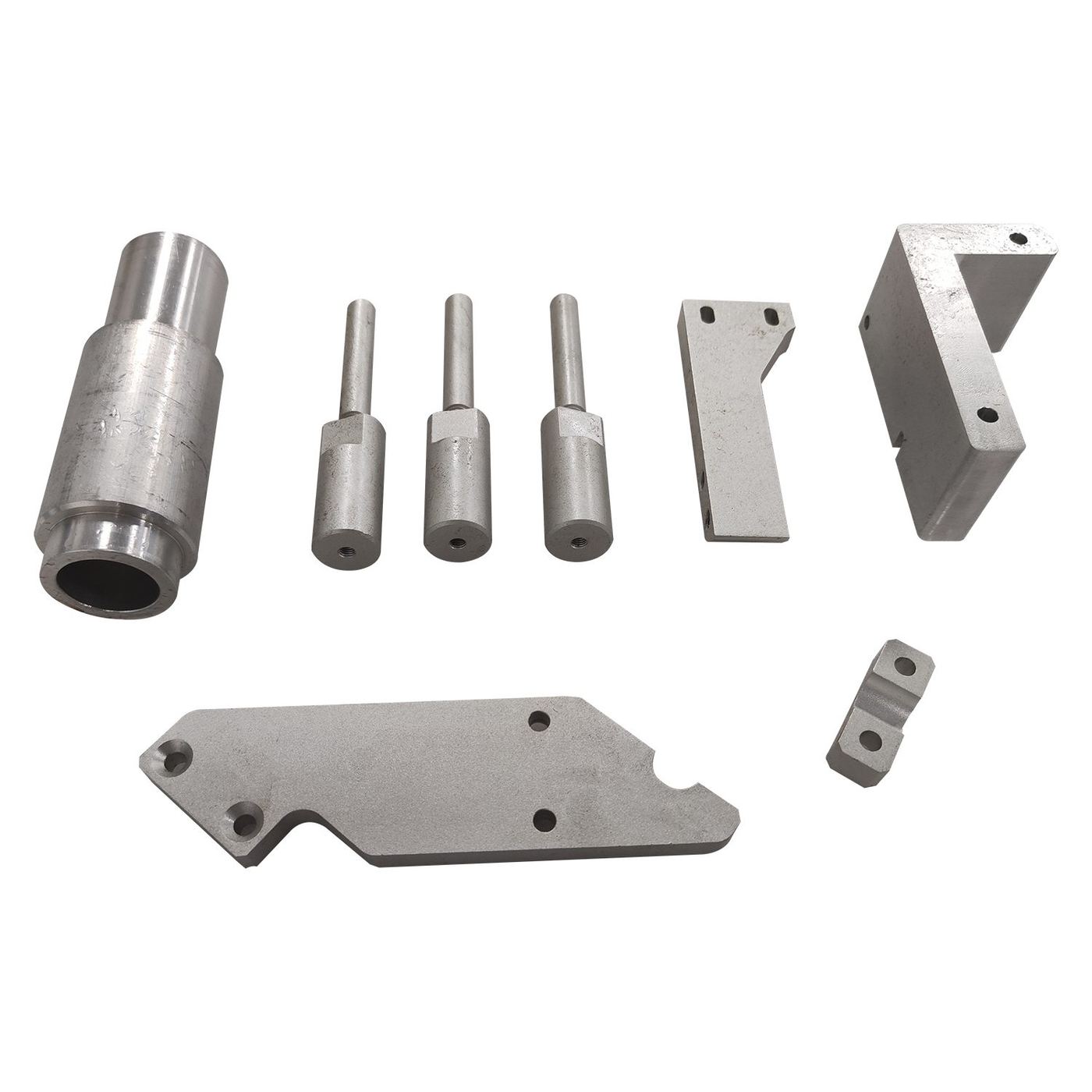

Precision turned and milled details awaiting inspection

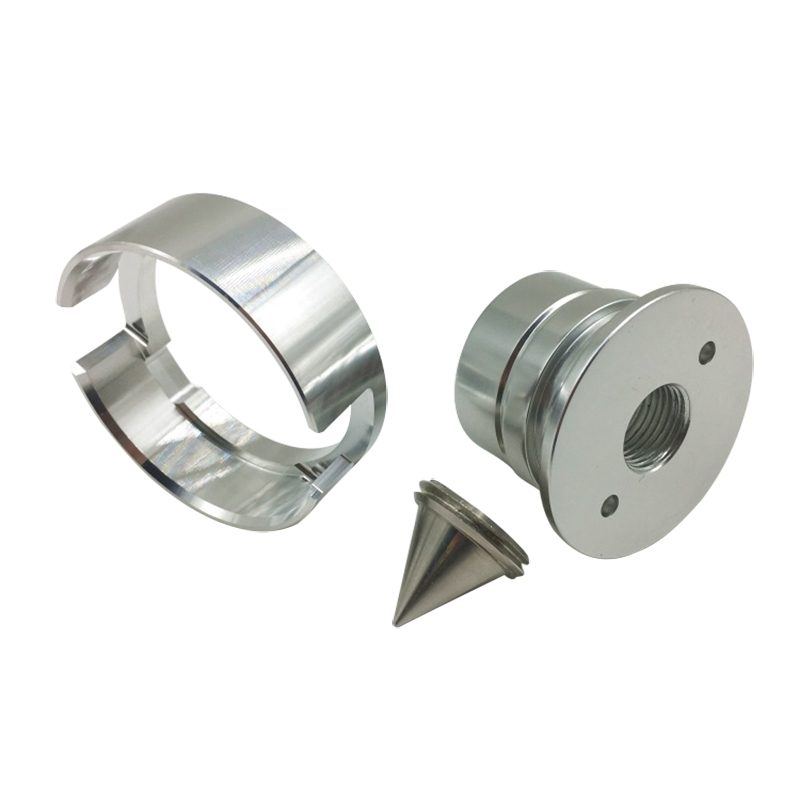

Thin-wall turned rings
CNC machining workshop with vertical machining centres

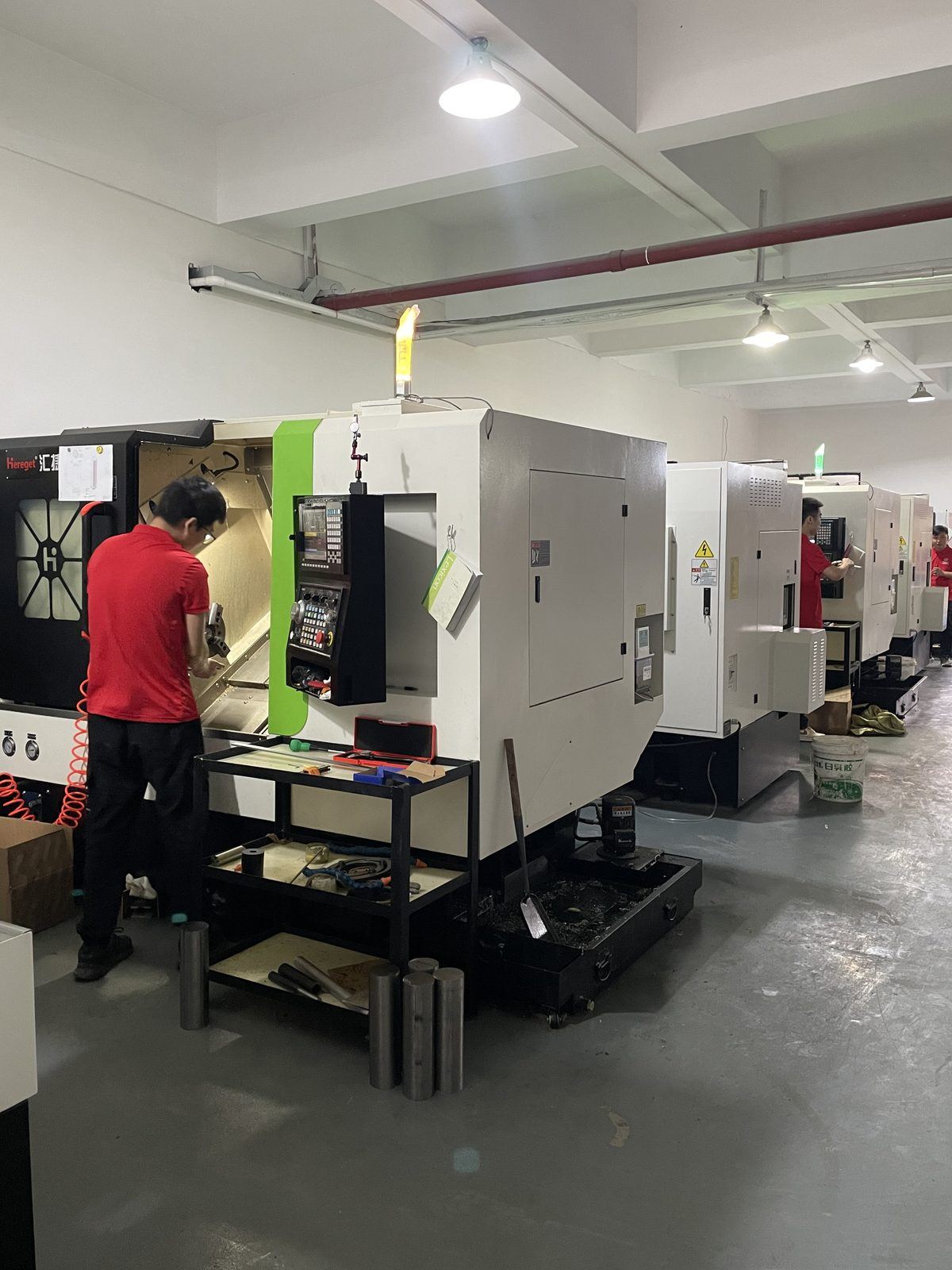

Five-axis machining bay
Italian-imported five-axis gantry machining centreFull detail on the prototype workflow page.
What tolerance can CNC machining hold at Everoyal?
Positional tolerance is held to 0.02 mm and precision bores to 0.01 mm. Bores and critical faces are measured before the part leaves the bay.
Can you machine a full-size robot frame in one set-up?
The Italian-imported five-axis gantry machine has an envelope of 8 m x 4.2 m x 2.5 m and runs at 24,000 rpm, which covers full-size structural frames and prototype assemblies.
Do machined prototypes use the same material as production?
Yes. CNC-machined prototypes use production-equivalent engineering plastics and alloys, so mechanical behaviour matches the real product.
